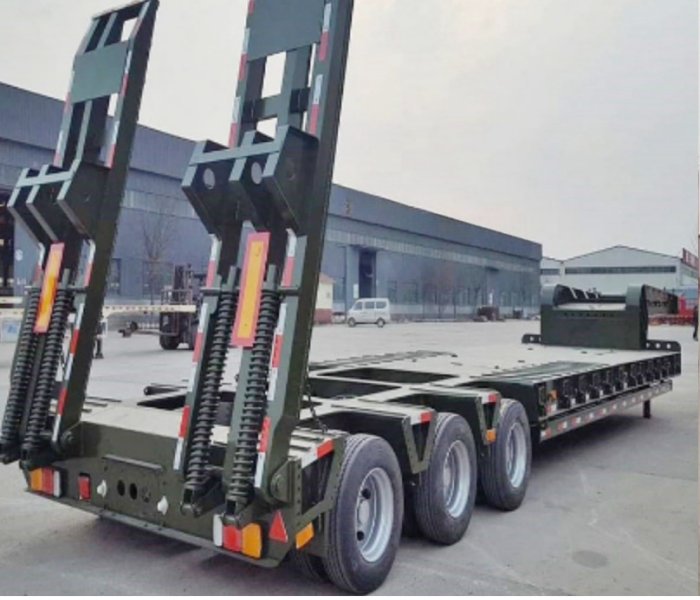

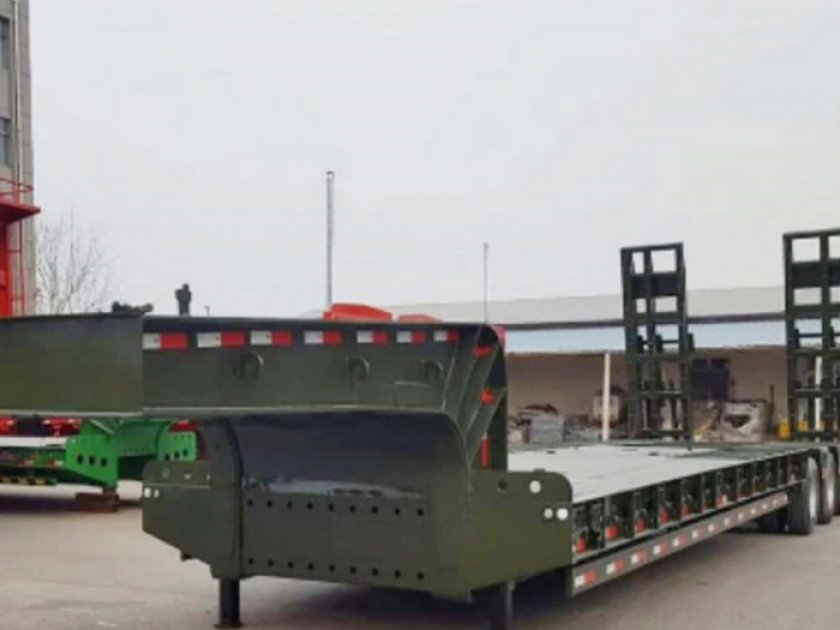

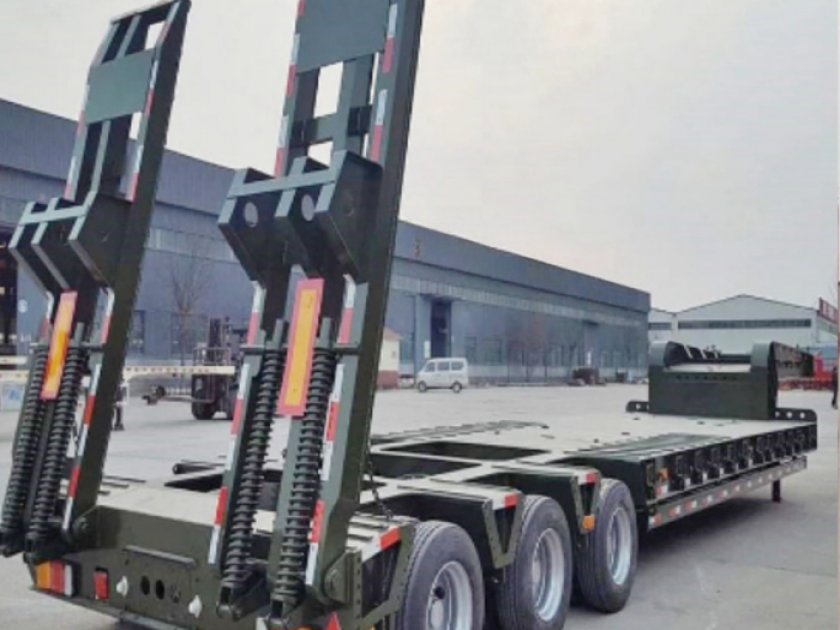

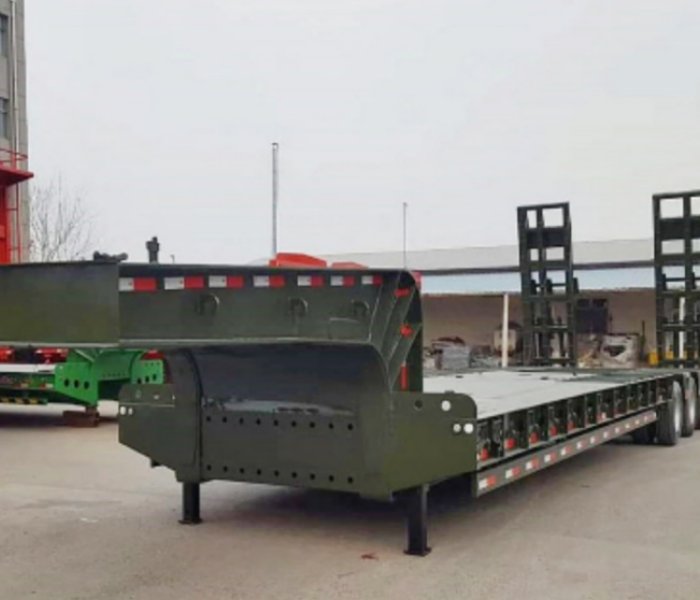

Heavy Duty 3 Lines 6 Axles Lowbed Trailer
Key Features:
✅Triple-Line Axle Configuration--Unique 3-line, 6-axle design provides unparalleled weight distribution.
✅120-Ton Payload Capacity--Engineered for the heaviest loads in extreme conditions.
✅Anti-Corrosion Treatment--Protective coating resists rust, extending service life in harsh conditions.
✅Compliance with Safety Standards--Equipped with anti-slip surfaces, reinforced ramps, and secure tie-down points for safe transportation.

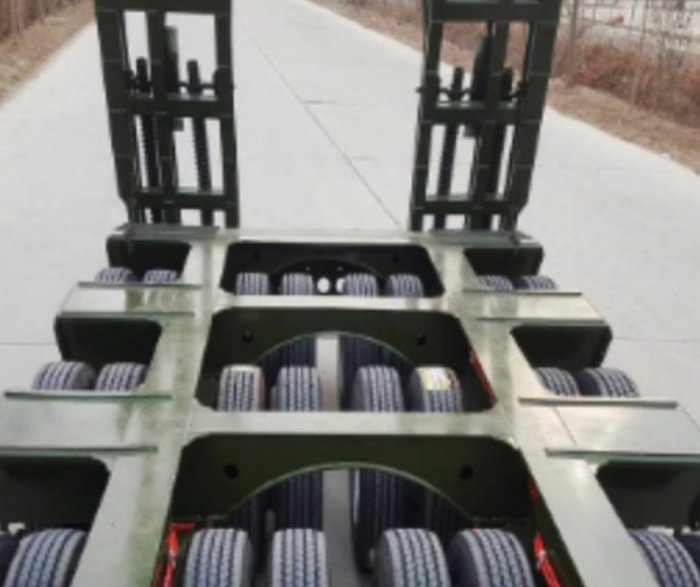

Heavy Duty 3 Lines 6 Axles Lowbed Trailer
Heavy Duty 3 Lines 6 Axles Lowbed Trailer
Heavy Duty 3 Lines 6 Axles Lowbed Trailer
Heavy Duty 3 Lines 6 Axles Lowbed Trailer
Specifications:
| Name | Line Axles Lowbed Trailer |
| Overall Size | 16000*3000*1550 mm(customizable) |
| Axles | 2 lines 4 axles/3 lines 6 axles/4 lines 8 axles/more |
| Payload | 80/120/160/more Tons |

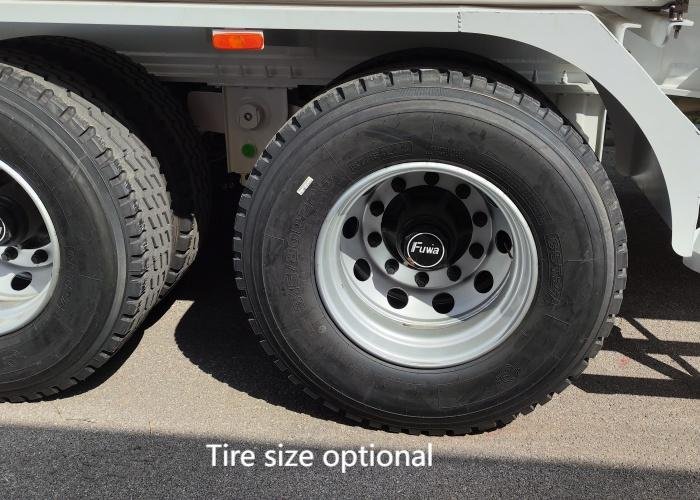

| Tires | 12R22.5 optional size |
| Function | Transport heavy duty equipment or machines etc. |
| Material | Carbon steel |
| Main beam | Height 500mm,top flange thickness 10-16mm,bottom flange is 12-18mm,middle web 5-10 mm |
| Platform | 3-5mm diamond plate |
| King pin | 50#(2")/90#(3.5") |

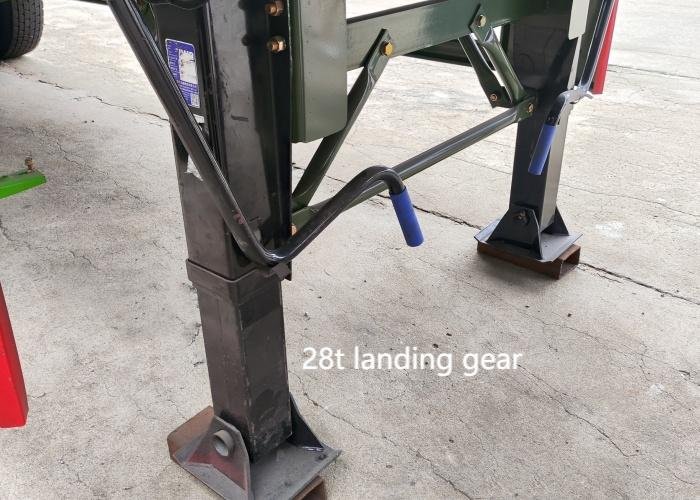

| Landing gear | 28 Ton two speed |
| Suspension system | Mechanical suspension or air suspension |
| Braking system | Dual line pneumatic braking system, T30/30+T30 Spring brake chamber, standard air tank |
| Tool Box | 1 Standard |
The 3 Lines 6 Axles Lowbed Trailer with 120-ton payload capacity represents the pinnacle of heavy haul engineering, designed for transporting massive construction, mining, and energy sector equipment with absolute reliability.
Contact us for pricing and configuration options!
