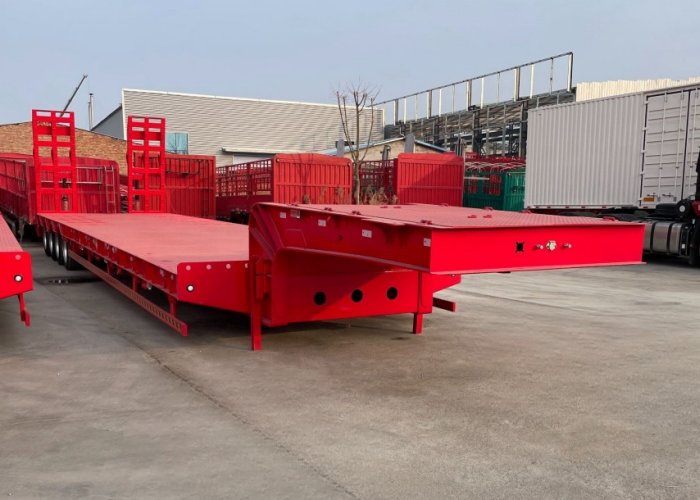

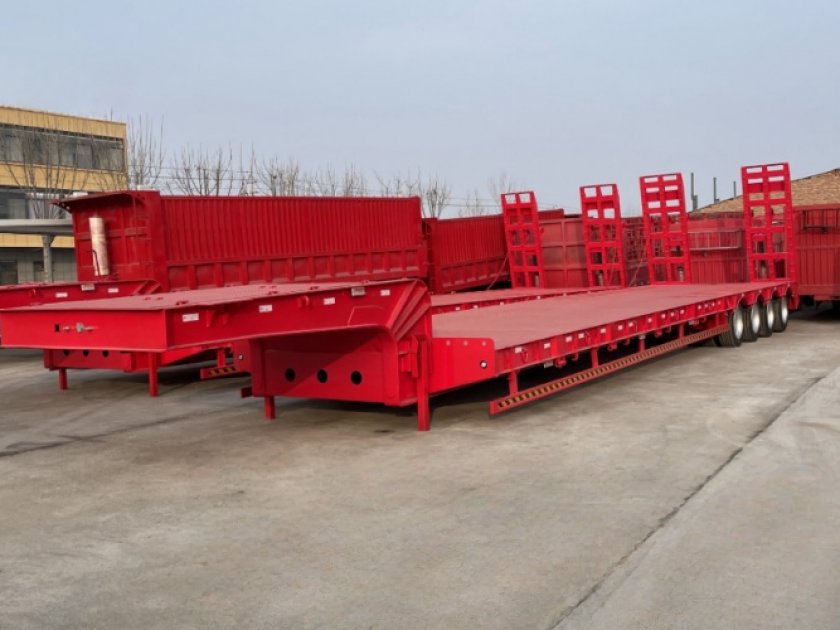

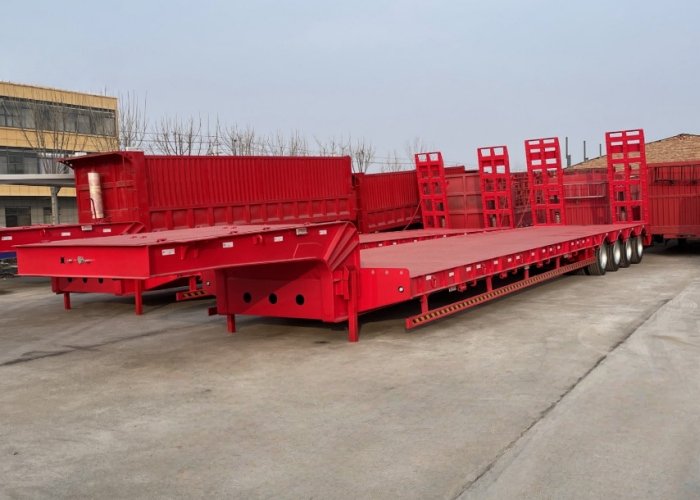

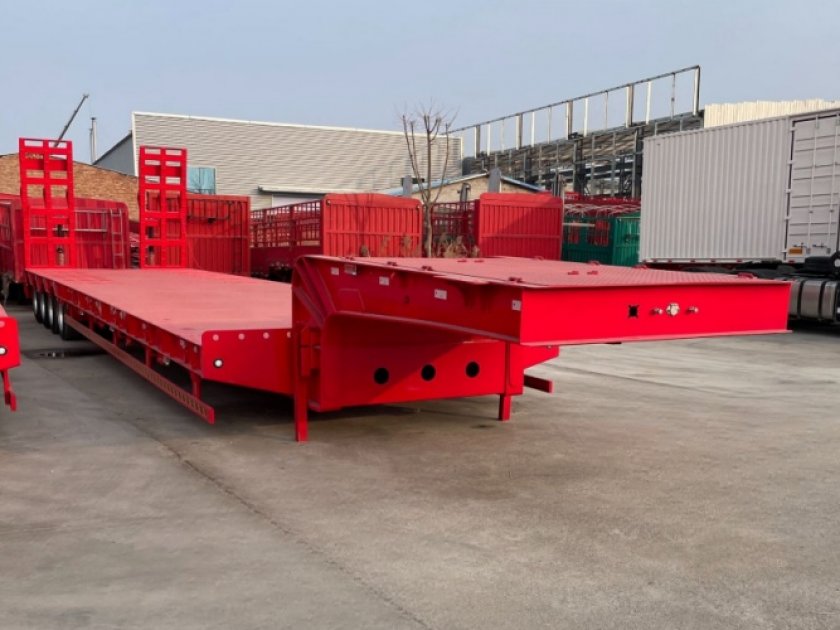

Customizable 4 Axles 80t Lowbed Trailer for Sale
Key Features:
✅80-Ton Payload Capacity--Designed to transport excavators, bulldozers, cranes, transformers, and other heavy machinery.
✅4-Axle Heavy-Duty Design--Ensures superior weight distribution, road compliance, and stability even under full load.
✅Anti-Corrosion Treatment--Protective coating resists rust, extending service life in harsh conditions.
✅Compliance with Safety Standards--Equipped with anti-slip surfaces, reinforced ramps, and secure tie-down points for safe transportation.
Customizable 4 Axles 80t Lowbed Trailer for Sale
Customizable 4 Axles 80t Lowbed Trailer for Sale
Customizable 4 Axles 80t Lowbed Trailer for Sale
Customizable 4 Axles 80t Lowbed Trailer for Sale
Specifications:
| Name | Lowbed Trailer |
| Overall Size | 16000*3000*1550 mm(customizable) |
| Axles | 4/5/6/7/more Axles |
| Unit axle capacity | 13/16/20 Tons |
| Payload | ≥100 Tons |

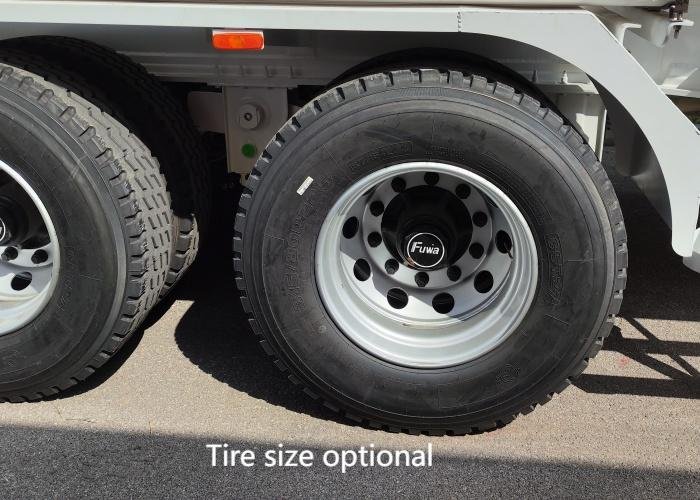

| Tires | 12R22.5 optional size |
| Function | Transport excavators, bulldozers, loaders, other heavy duty vehicles or machines etc. |
| Material | Carbon steel |
| Main beam | Height 500mm,top flange thickness 10-16mm,bottom flange is 12-18mm,middle web 5-10 mm |
| Platform | 3-5mm diamond plate |
| King pin | 50#(2")/90#(3.5") |
| Landing gear | 28 Ton two speed |

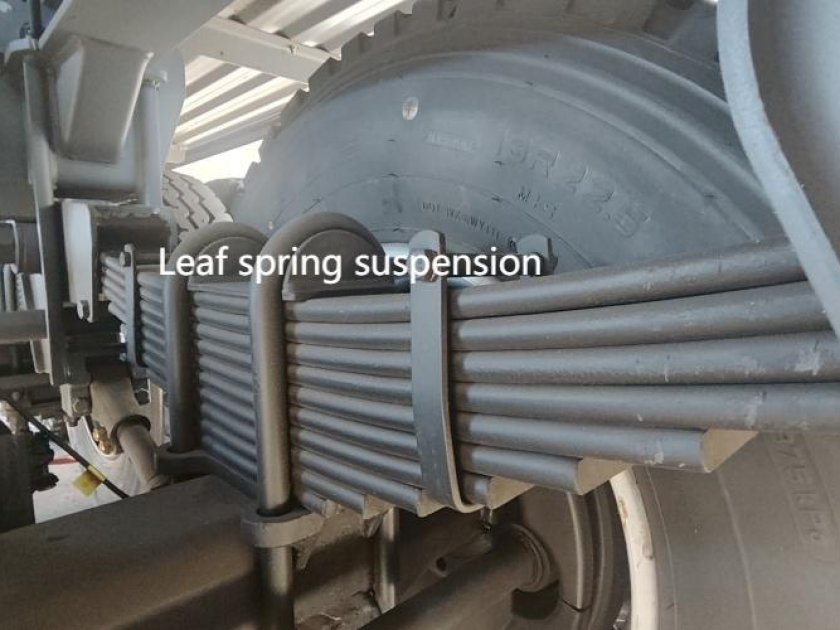

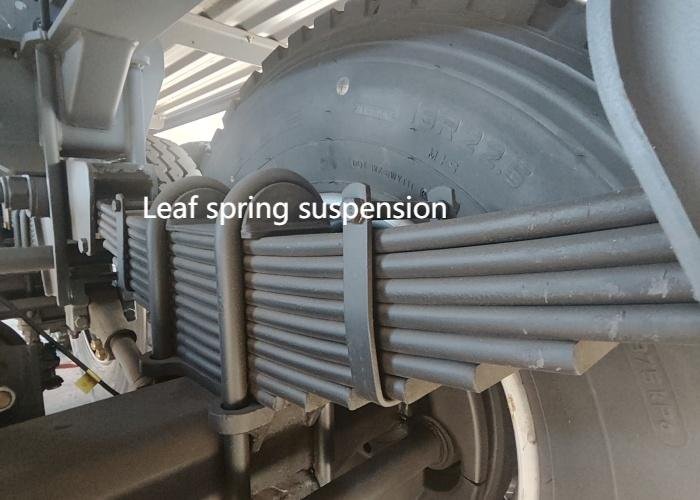

| Suspension system | Mechanical suspension or air suspension |
| Braking system | Dual line pneumatic braking system, T30/30+T30 Spring brake chamber, standard air tank |
| Tool Box | 1 Standard |
The 4 Axles 80t Lowbed Trailer is a high-performance heavy haulage solution designed for transporting large construction machinery, industrial equipment, and oversized loads.
Contact us for pricing and configuration options!
