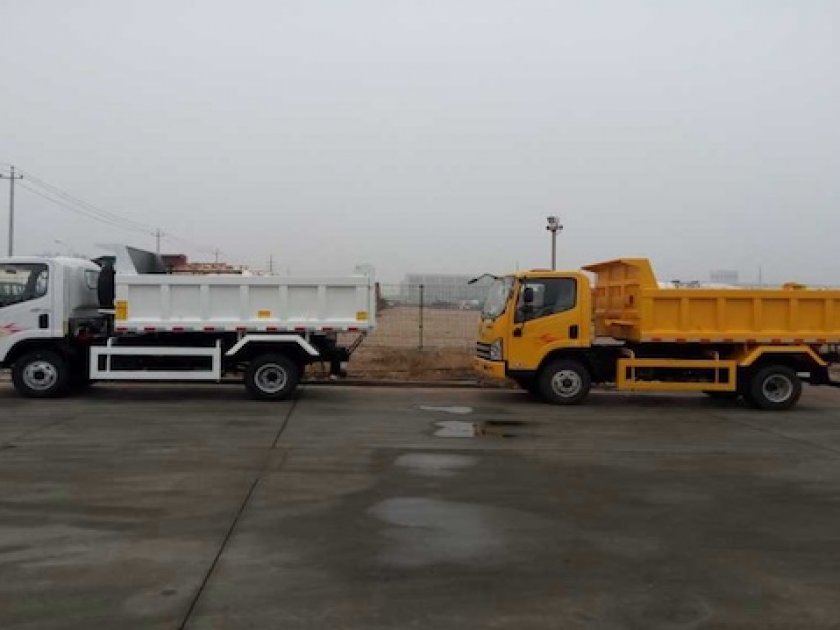

FAW 4×4 Tipper Truck Mini Dump Truck

Drive System

4×4

Cabin

Tiger V flatbed cabin

Engine

YC4D130-33

Rated power

130hp

Gear box

6T115

Clutch

Ф330

Loading capacity (kg)

8 Ton

Front axle

LS18CA1Qpower divider + LS2060 front axle

Rear axle

1068 single reduction, Blunt welding bridge

Wheel base (mm)

3260

Frame

216×75×6 (mm)

Overall dimensions (L*W*H)  (mm)

6300×2100×2400

Cargo box dimension  (L*W*H) (mm)

3600×2000×600

Thickness (mm)

Bottom 4, side 3.   Middle lifting style

Tire

7.50R16
