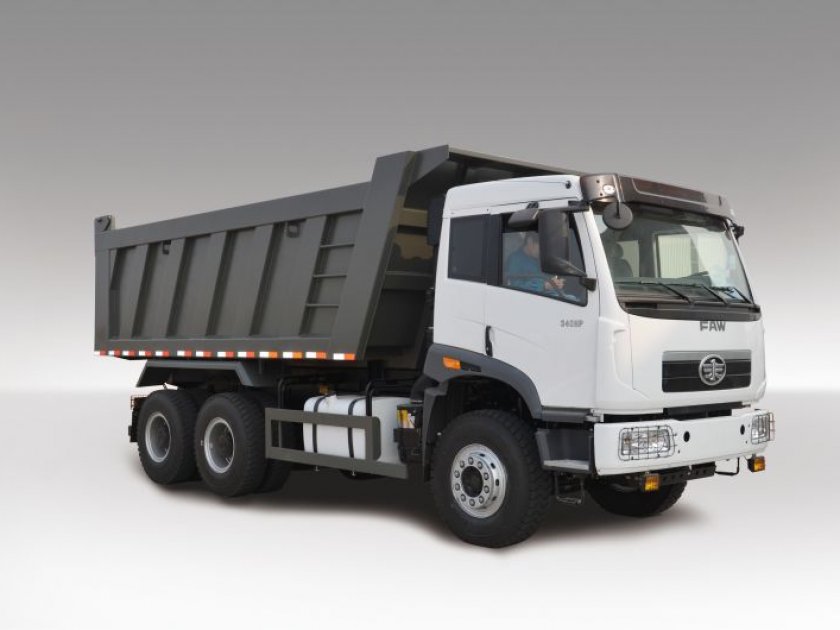

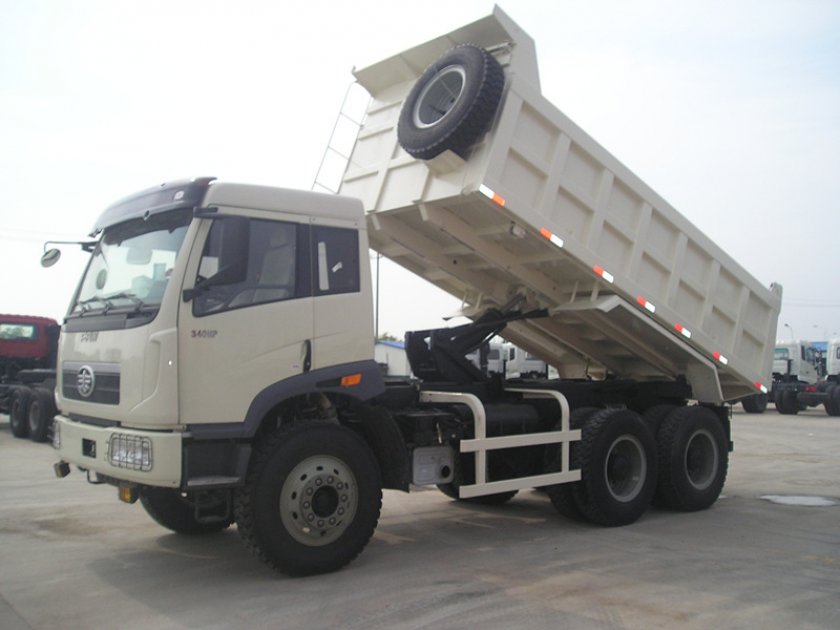

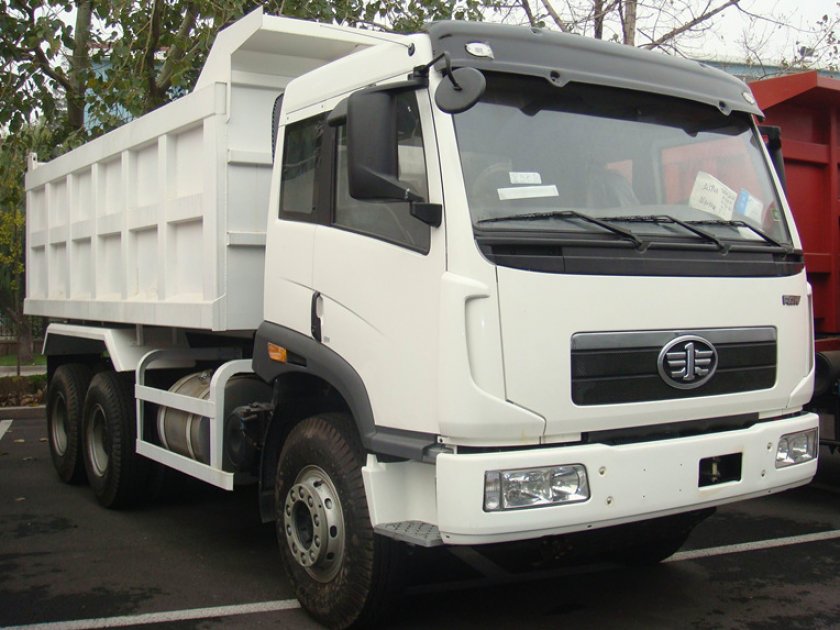

FAW 6×4 18M3 dump truck
FAW New J5P 6×4 dump truck | |
Drive System | 6×4, with sleeper, with air conditioning |
Engine | WP10.380E32 9.726L Euro 3 |
Rated power | 380 hp |
Gearbox | Manual gearbox,12JSD160T; 12 forward speeds, 2 reverse speed |
Overall dimensions (mm) | 8600×2500×3400 |
Dump body (mm) | 5600×2300×1400 |
Thickness (mm) | Bottom 8, side 6 |
Hydraulic lifting system | Middle lifting T style |
Wheel base (mm) | 3700 + 1350 |
Frame | 320*90*(8+8) |
Rear Axle | 13 Ton, hub reduction, Speed ratio: 5.921 |
Approach / depature angle (° ) | 25 / 32 |
Clutch | Φ 430mm Diaphragm type |
Tire | Radial tire 12.00R20 |
Fuel Tank | 400L |
