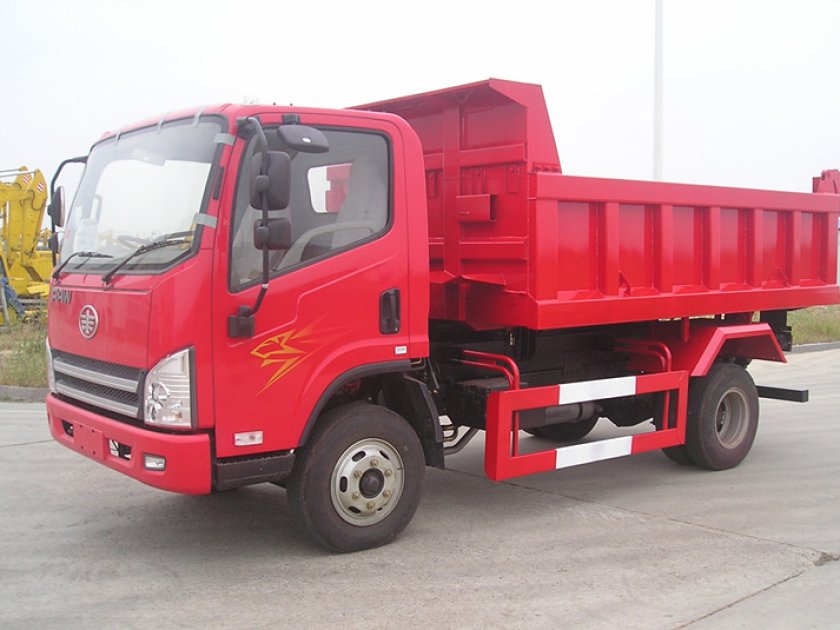

Faw 4×2 Hot sale Sewa Dump Truck 120hp

Drive System

4×2;  Left/Right hand drive

Cabin

Tiger V flatbed cabin

Overall dimensions (L*W*H)  (mm)

5950×2100×2700mm

Dump box dimension  (L*W*H) (mm)

3600×2000×600mm

Thickness of dump box (mm)

Bottom 4mm, side 3mm   Middle lifting style

Loading capacity (kg)

6 Ton

Engine

Dachai CA498E3-12

Rated power

120hp

Gear box

6T115

Clutch

Ф330

Wheel base (mm)

3260

Frame

216×75×6 (mm)

Front axle

X349

Rear axle

1068Blunt welding axle ;   speed ratio: 5.375

Tire

7.50R16
